Worksheet On Ohms Law

Ohms Law Worksheet grade 9 science Name Surname Ohm’s Law

Electrical installation (1276565) main content: A 5 v source connects to a 10 ohms resistor. Power(watts) = voltage(volts) x current(amperes) 1. How much resistance is in the circuit if it uses a current of 0.01 a? Apply the ohm's law circle to find the missing values.

Ohm's law worksheet ccp

Web ohms law worksheet 1. Current(i) (in amps) = voltage (v) (in volts) i = v or v=i x r resistance(r) (in ohms) r. $$e=ir \ \ \ \ \ \ \ \ \ \ \ i=\frac{e}{r} \ \ \ \ \ \ \ \ \ \ \ r=\frac{e}{i}$$ where, Apply the ohm's law circle to find the missing values..

Ohms Law Practice Worksheet Abitlikethis Ohms Law Worksheet Artgumbo

For any resistor the current is directly proportional to the voltage across it. It’s your ultimate toolkit for tackling homework and acing the ap physics exam. Ohm’s law practice worksheet without solution. Print and com mplete this worksheet. Web ohm’s law worksheet contains top 10 worksheet problems with answers that help you practice and learn the ohm’s law.

Ohms Law Worksheet

Web ohm’s law practice worksheet with answers. = show all of your work. What are the four basic symbol. Web one of the fundamental equations used in electricity and electronics is ohm’s law: Download ohm’s law practice worksheet (with answers) or continue learning below:

15 Ohms Law Calculations Worksheet /

V= ________ v=12volts r=12 ohms. There is no relationship between resistance and current. Web ohms law worksheet 1. Knowing the value of any two of these variables in a circuit, one can solve for the third. In this worksh heet, you will a answer questtions based on electricity a and ohm’s law.

Ohms law practice problems worksheet with answers pdf

Explore the world of electric current resistivity and ohm's law with our free printable science worksheets. Web ohm's law (v=ir) is a key equation in the analysis of electrical circuits since it relates the voltage (v) to the current (i) scaled by the resistance (r). When beginning to explore the world of electricity and electronics, it is vital to start.

Ohms Law Worksheet Answers Escolagersonalvesgui

What current flows through a hair dryer plugged into a 110 volt circuit if it has a resistance of. Web ohm's law (v=ir) is a key equation in the analysis of electrical circuits since it relates the voltage (v) to the current (i) scaled by the resistance (r). Web ohm’s law relates the voltage across a component and the current.

Worksheet Ohms Law Practice CP

In this worksh heet, you will a answer questtions based on electricity a and ohm’s law. In ohm's law, if the resistance is increased and voltage remains the same: What is the current in a 160v circuit if the resistance is 20ω? What current flows through a hair dryer plugged into a 110 volt circuit if it has a resistance.

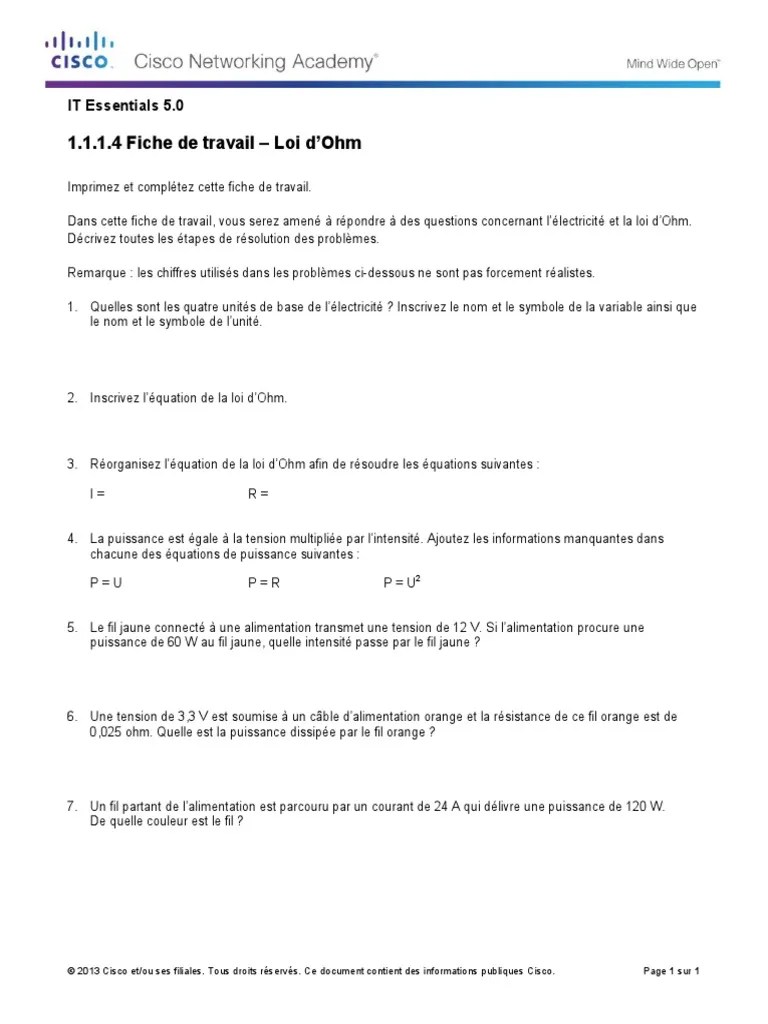

1.1.1.4 Worksheet Ohms Law

How much resistance is in the circuit if it uses a current of 0.01 a? V= ________ v = 100 volts. Discover essential concepts and enhance your students' understanding through these educational resources. Ohm’s law practice worksheet without solution. What are the four basic symbol.

Ohms Law Worksheet —

Electrical installation (1276565) main content: V= ________ v =40 volts. Ohm’s law practice worksheet without solution. Web ohm's law is the relationship between voltage, current, and resistance: The relationship between voltage (e or v, measured in units of volts), current (i, measured in units of amperes), and resistance (r, measured in units of ohms):

Worksheet On Ohms Law - V= ________ v=12volts r=12 ohms. So the resistance, r, is a measure of the potential difference v divided by the flow of charge or current i. Ohm’s law practice worksheet without solution. Web ohm’s law practice worksheet. Ohm’s law practice worksheet with solution. Knowing the value of any two of these variables in a circuit, one can solve for the third. Discover essential concepts and enhance your students' understanding through these educational resources. If the current is 10 amps and the resistance is 3 ohms, what is the voltage? An alarm clock draws 0.5 a of current when connected to a 120 volt circuit. Current(i) (in amps) = voltage (v) (in volts) i = v or v=i x r resistance(r) (in ohms) r.

Print and com mplete this worksheet. The relationship between voltage (e or v, measured in units of volts), current (i, measured in units of amperes), and resistance (r, measured in units of ohms): Answer the following questions based on reading from chapter 23 (pgs. Apply the ohm's law circle to find the missing values. The amounts used in n these proble ems may not be realistic.

Voltage is commonly defined as “electrical pressure.” the unit of the volt, however, may be defined in terms of more fundamental physical units. Download ohm’s law practice worksheet (with answers) or continue learning below: Power(watts) = voltage(volts) x current(amperes) 1. In ohm's law, if the resistance is increased and voltage remains the same:

Web Ohm's Law (V=Ir) Is A Key Equation In The Analysis Of Electrical Circuits Since It Relates The Voltage (V) To The Current (I) Scaled By The Resistance (R).

Web one of the fundamental equations used in electricity and electronics is ohm’s law: What current flows through a hair dryer plugged into a 110 volt circuit if it has a resistance of. C units of elec ctricity? If a battery in a circuit is 24 volts and the resistance is 12 ohms what is the current?

The Amounts Used In N These Proble Ems May Not Be Realistic.

It’s your ultimate toolkit for tackling homework and acing the ap physics exam. There is no relationship between resistance and current. Web ohm's law and power equation practice worksheet. Web ohm’s law states that the current i that flows in a circuit is directly proportional to the voltage v across the circuit and inversely proportional to the resistance r of the circuit.

So The Resistance, R, Is A Measure Of The Potential Difference V Divided By The Flow Of Charge Or Current I.

What is the current in a 160v circuit if the resistance is 10ω? How much resistance is in the circuit if it uses a current of 0.01 a? An alarm clock draws 0.5 a of current when connected to a 120 volt circuit. Explore the world of electric current resistivity and ohm's law with our free printable science worksheets.

If You Are A Teacher Looking For A Resource To Assess Your Students,.

Given a voltage of 120 volts and a current of 5 amps, what is the resistance? The relationship between voltage (e or v, measured in units of volts), current (i, measured in units of amperes), and resistance (r, measured in units of ohms): For any resistor the current is directly proportional to the voltage across it. In ohm's law, if the resistance is increased and voltage remains the same:
