Physics Motion Graphs Worksheet

The position vs time graph (on the left) shows how far away something is relative to an observer. Web the following practice questions test your understanding of the graphical description of motion. Web motion graph practice questions from the list below, choose the term that best completes each sentence. How far does the car travel during section “b”? Identify section(s).

In which section is the car accelerating from rest? Web the position graph is parabolic. Motion reference point velocity speed 1. The graph below represents the velocity of an object 10. 1.s c hm ed rik sta ou n f a z ’ dri v ng ac em tx sou h y f p.

It could be used as an end of topic test, as a homework task or used in class. Web the following practice questions test your understanding of the graphical description of motion. Answer questions 1 and 2 in complete sentences. Forces and motion (2011498) matsec level questions. T t t graph practice try making all three graphs for the following.

1.s c hm ed rik sta ou n f a z ’ dri v ng ac em tx sou h y f p. I can use a motion sensor to create a graph. The position vs time graph (on the left) shows how far away something is relative to an observer. October 10 & 11, 2011. Distance should be plotted.

October 12 & 17, 2011. Motion reference point velocity speed 1. What is the acceleration of the car in each section? Web the following practice questions test your understanding of the graphical description of motion. Activity for practicing plotting graph data points, drawing a line of best fit, calculating a gradient and analysing the line in order to calculate quantities.

Plot the corresponding graph of acceleration as a function of time. Answer questions 1 and 2 in complete sentences. Write your answers on the line provided. 1.s c hm ed rik sta ou n f a z ’ dri v ng ac em tx sou h y f p. There is more “positive area” than negative on the v graph.

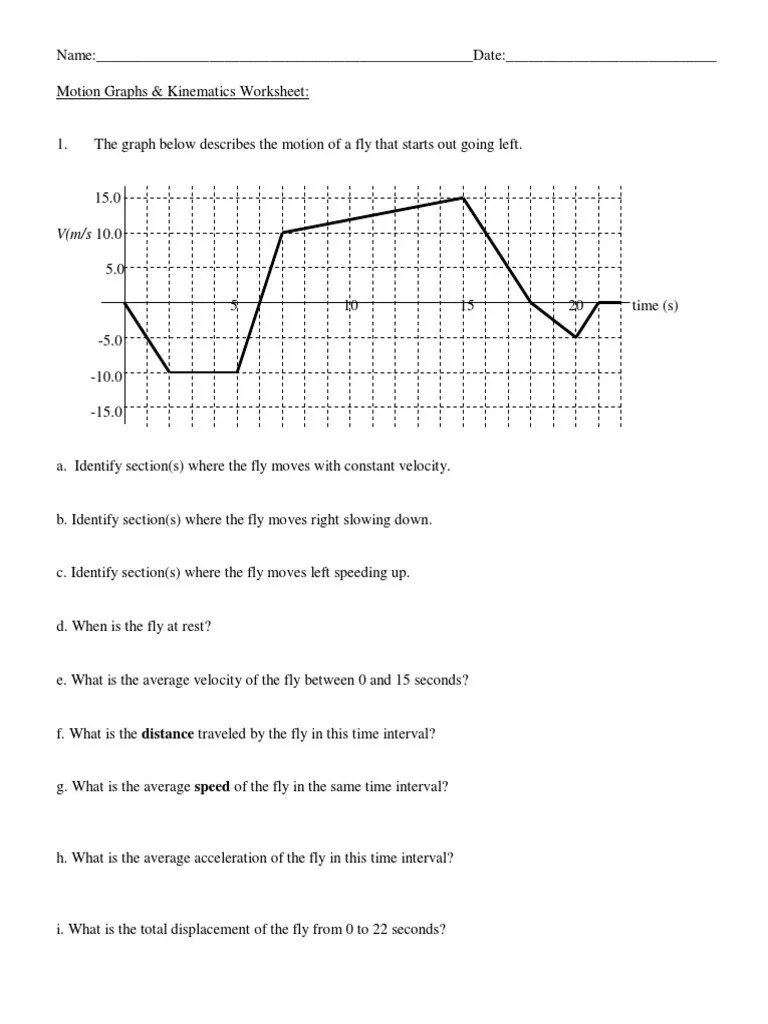

We can show how these quantities change over a period of time. Motion graph | teaching resources. Identify section(s) where the fly moves with constant velocity. Web motion graph practice questions from the list below, choose the term that best completes each sentence. Identify section(s) where the fly moves left speeding up.

What does the slope of a speed vs. The graph below shows velocity as a function of time for some unknown object. In which section is the car accelerating from rest? Forces and motion (2011498) matsec level questions. Distance should be plotted on the y axis, and time on the x axis.

An object is in _____ when its distance from a(n) _____ is changing. In which section is the car’s acceleration negative? What does the slope of a distance vs. We can show how these quantities change over a period of time. 1.s c hm ed rik sta ou n f a z ’ dri v ng ac em tx sou.

Identify section(s) where the fly moves right slowing down. What is the acceleration of the car in each section? The graph below represents the velocity of an object 10. How far does the car travel during section “b”? When objects are in motion, their distance and velocity can be plotted against time.
