Force Diagrams Worksheet With Answers
Force Diagrams Worksheet With Answers - Force diagram practice for each of the following systems: See answer to situation a. For all solutions, let t1 be the cable on the left and t2 be the cable on the right. Use dots (points) to represent the objects and arrows to represent the forces. Free particle model worksheet 1b: Identify the newton’s third law pairs.
Phoebe physics pulls a wagon with a force of 80 n. Force diagram practice for each of the following systems: This force diagrams worksheet is intended to be used for independent learning. The forces acting on the balloon. Forces (2011881) choose the correct statement.
Web unit 4 worksheet 1: It usually presents a scenario or situation where forces are acting on an object, and the task is to correctly identify and represent these forces in. The passenger has a mass of 85 kg. A second horizontal force of 180 n is applied to the crate in the opposite direction. The answers to this worksheet provide a valuable resource for students to assess their understanding of force diagrams and their ability to apply newton’s laws.
Calculating Force Worksheet Answers
Start by identifying the contact forces. See answer to situation a. See answer to situation d. This force diagrams worksheet is intended to be used for independent learning. This force diagrams worksheet is intended to be used for independent learning, designed for students working to a ks3 physics level of work.
13 Best Images Of Force Diagrams Worksheets With Answers 2 Drawing Vrogue
Use dots (points) to represent the objects and arrows to represent the forces. The athlete at point a runs 150 m east, then 70 m west and then 100 m east. Web a force diagram worksheet is a valuable tool for students and learners to practice their understanding of force diagrams. The forces acting on the balloon. Web example question.
worksheet. Force Diagrams Worksheet. Grass Fedjp Worksheet Study Site
A) what is the net force if the force of friction between the wagon and the ground is 12 n? Determine the magnitude and direction of the resultant force acting on the crate. In the box to the right of the physical diagram, draw a force diagram for the specified object in each of the following situations. Web in this.
Drawing Force Diagrams Worksheet 2 Answers 2v2 All Star Game
Click the buttons to view the answers. Force diagrams and net force 1. It usually presents a scenario or situation where forces are acting on an object, and the task is to correctly identify and represent these forces in. How to make a free body diagram. Sketch all the forces acting upon the object, making the length of each vector.

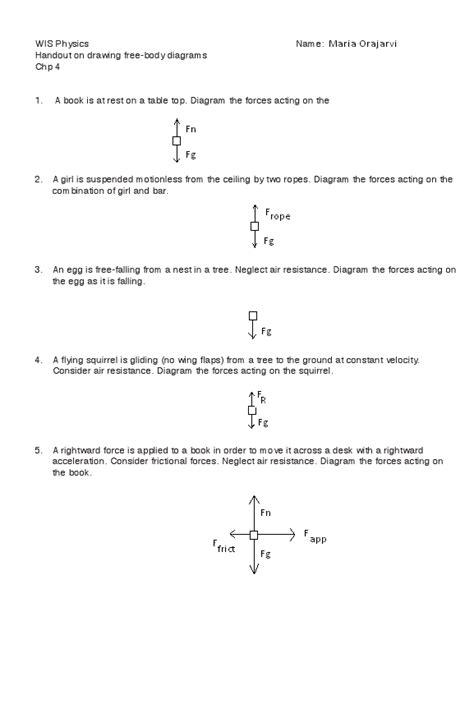

Worksheet 1 Free Body Or Force Diagrams Answer Key Printable Word
Web 11 forces & newton’s laws worksheet 1. Force diagrams and component forces. See answer to situation a. Web unit 4 worksheet 1: The sheet shows students how to draw force arrows on.
Free Body Diagrams Worksheets Answers
Review the key concepts and skills for forces, including how to draw free body diagrams. A forward horizontal force of 50 n is applied to a crate. Free particle model worksheet 1b: The track radius is 130 meters. It is aimed to give the pupils lots of deliberate practice working with force diagrams to find resultant forces.
9 Balanced And Unbalanced Forces Worksheet /
A 100 n sign is to be suspended by two cables. For each situation, determine the net force acting upon the object. Identify the newton’s third law pairs. A) what is the net force if the force of friction between the wagon and the ground is 12 n? Force diagram for a 60 kg passenger.
Worksheet Force Diagrams Answers 454602 Free Worksheets Samples
Mr bean is being blown along by the wind! The forces acting on mr bean. Web 11 forces & newton’s laws worksheet 1. Show the relative sizes of the forces by using. Force diagrams and component forces.
Forces Worksheet 22 Answer Key
Web explore forces diagrams independently. See answer to situation a. Longer arrow for a larger force and equal length arrows for forces equal in magnitude. This force diagrams worksheet is intended to be used for independent learning, designed for students working to a ks3 physics level of work. Ks3 physics ks3 forces extra resources.
Forces Worksheet 22 Answer Key
Let's look for what the object is touching by outlining the object (see figure 1 below). Free particle model worksheet 1b: Ks3 physics ks3 forces extra resources. Draw a quantitative force diagram for the rollercoaster train. A forward horizontal force of 50 n is applied to a crate.

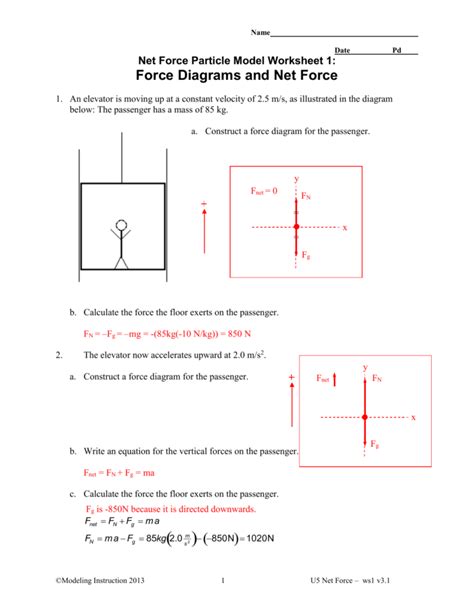

Force Diagrams Worksheet With Answers - Web example question #1 : A second horizontal force of 180 n is applied to the crate in the opposite direction. A 100 n sign is to be suspended by two cables. The forces acting on mr bean. Determine the tension in each cable for the given angles… solution. In the box to the right of the physical diagram, draw a force diagram for the specified object in each of the following situations. An elevator is moving up at a constant velocity of 2.5 m/s, as illustrated in the diagram below: See answer to situation b. Name date pd net force particle model worksheet 1: Force diagrams and component forces.
Force diagram practice for each of the following systems: Force diagrams forces forces year 4 force and motion newtons first law forces worksheet. Use dots (points) to represent the objects and arrows to represent the forces. This force diagrams worksheet is intended to be used for independent learning. In each of the following situations, represent the object with a particle.
[what about other long range forces?] types of forces. Force diagrams forces forces year 4 force and motion newtons first law forces worksheet. I created this resources with ks3 in mind but no reason why it shouldn’t be a used in la ks4. The forces acting on mr bean.
In The Box To The Right Of The Physical Diagram, Draw A Force Diagram For The Specified Object In Each Of The Following Situations.
Draw a quantitative force diagram for the rollercoaster train. Forces (2011881) choose the correct statement. A) what is the net force if the force of friction between the wagon and the ground is 12 n? See answer to situation b.
Let's Look For What The Object Is Touching By Outlining The Object (See Figure 1 Below).
How to make a free body diagram. On a separate sheet of paper draw simplified sketches of the following situations. Identify the newton’s third law pairs. The answers to this worksheet provide a valuable resource for students to assess their understanding of force diagrams and their ability to apply newton’s laws.
Draw System Schemas For Each Situation.
Force diagrams and net force 1. If the mass accelerates down the plane at a rate of and the angle , what is the coefficient of kinetic friction between the mass and slope? Show the relative sizes of the forces by using. See answer to situation c.
Web Explore Forces Diagrams Independently.
Web unit 4 worksheet 1: Determine the tension in each cable for the given angles… solution. Web in worksheet 2, students are presented with a variety of situations and asked to draw force diagrams to represent the forces at play. This force diagrams worksheet is intended to be used for independent learning.
